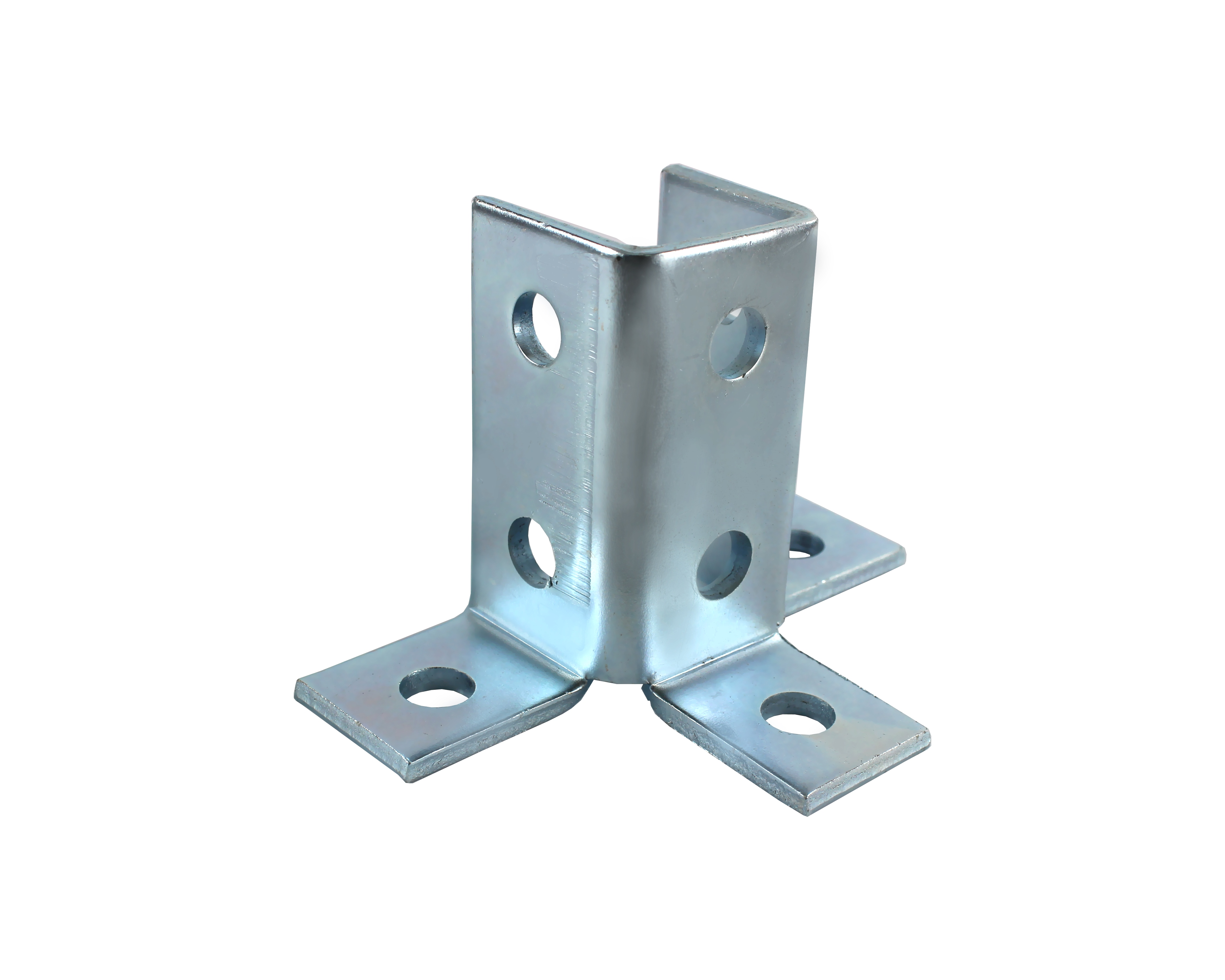

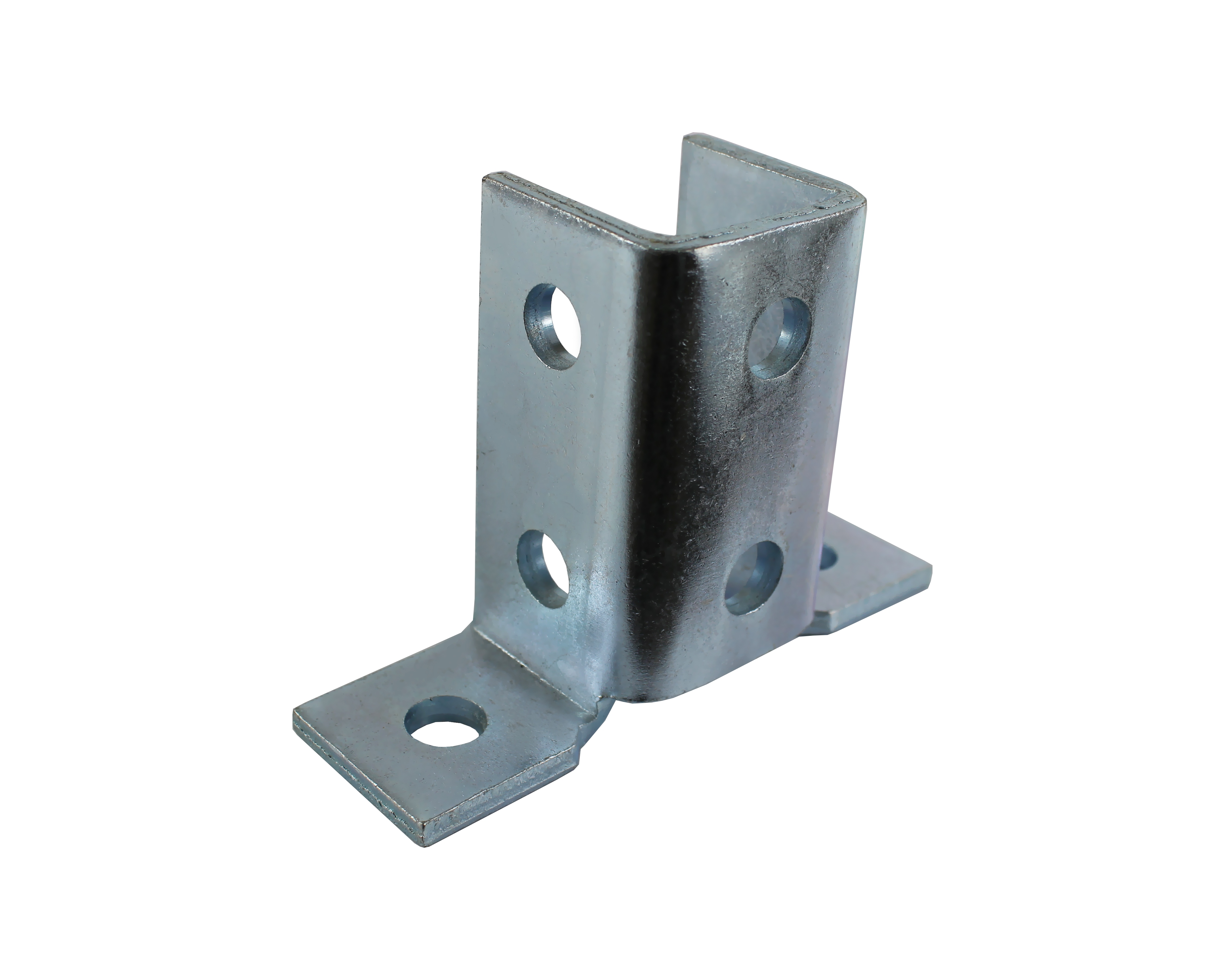

base plate standard steel frame and connection fitting for channel

1. Channel fittings are also widely applied in HVAC (heating, ventilation, and air conditioning) systems for routing ductwork and pipes.
2. They provide a secure platform for mounting electrical panels, junction boxes, and control cabinets.
3. These fittings are suitable for use in seismic zones, as they offer stability and resistance to seismic activities.

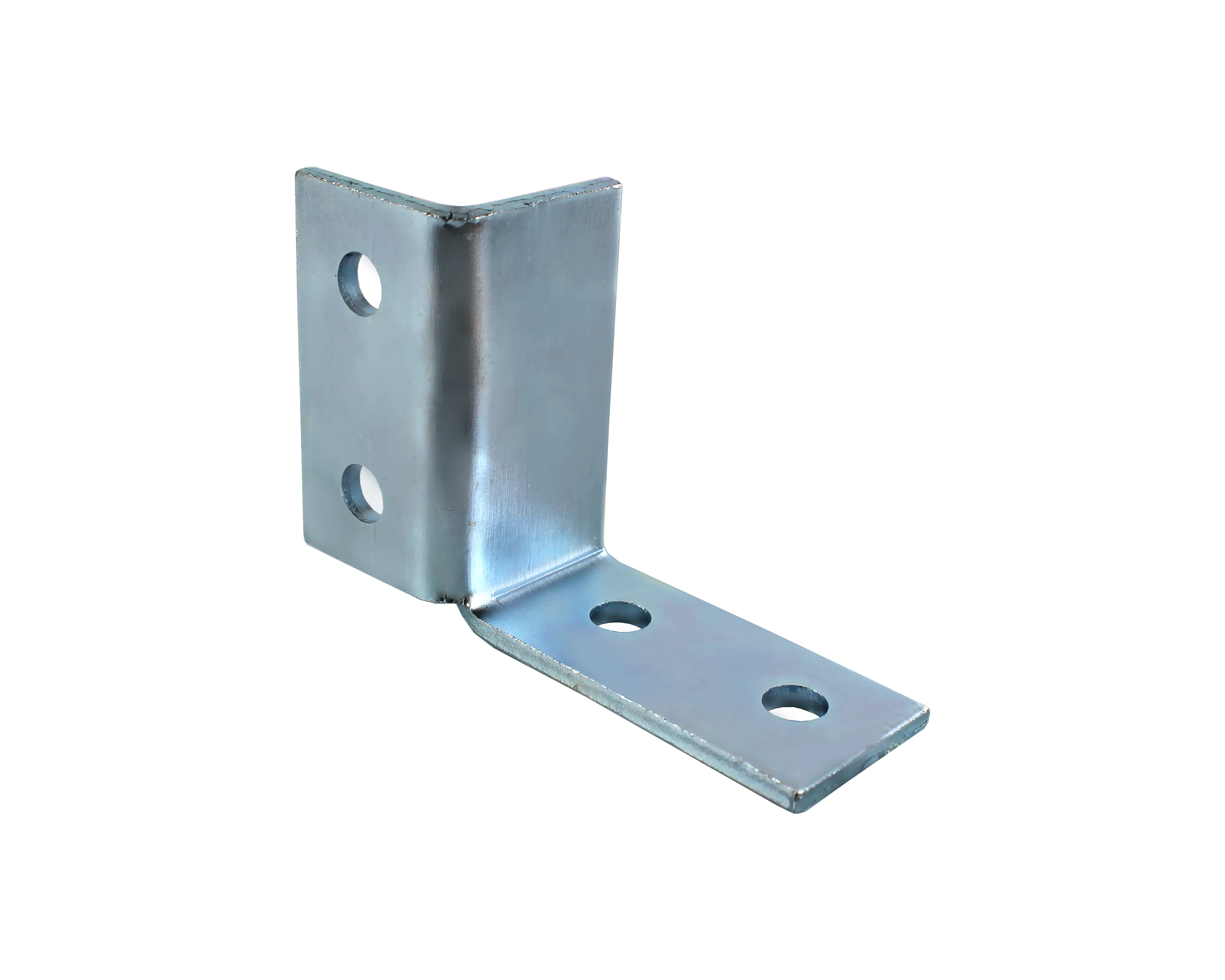

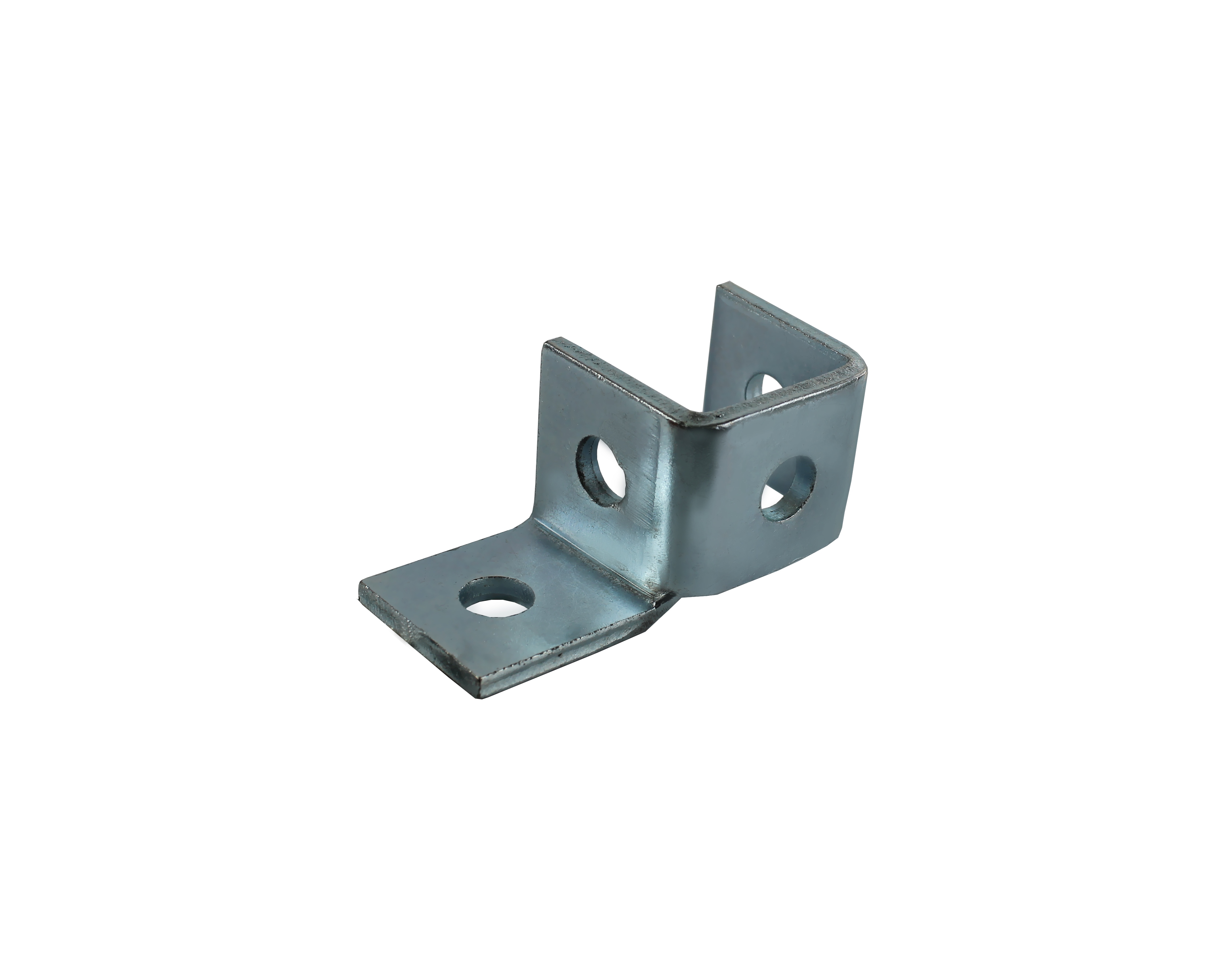

connection fitting for channel

1.Thickness is 6mm, hole spacing on center is 47.6mm, hole spacing from end is 20.6mm, width is

40 mm and steel grade is Q235 for all general fittings but special specification.

2.Hole diameter is 11mm for M10 fittings,13mm for M12 fittings but special specification.

3.The series are all manufacture from low-carbon steel with galvanized finish.

4.The series are also available in stainless steel. If you need special application fittings, contact us

for size.
